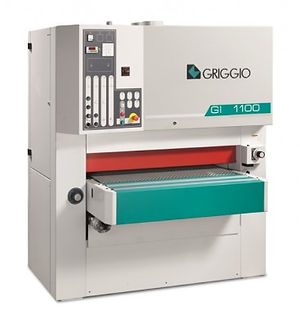

GRIGGIO GI1100
Stressing Ageing
Technical Data
Useful working width GI 1100 = 1100 mm
Min. working length GI 1100/2-GI 1300/2 (RR) = 280 mm
Min. working length
GI 1100/2-GI 1300/2 (RT-RRT) = 370 mm
Abrasive belts length = GI 1100 2150×1120 mm
Net weight GI 1100/2 RR = 1700 kg
Net weight GI 1100/2 RRT = 2000 kg
Useful working height = 160 mm
Min. working height = 3 mm
Abrasive belt speed 1st roller = 18 m/sec
Abrasive belt speed 2nd roller = 16 m/sec
Main motor power = 20 (15) hp (kw)
Table lifting motor power = 0,35 hp
Feeding motor reducer = 0,75 hp
Variable feeding speed of the mat = 4-20 m/1′
2 Suction dust hoods dia. = 160 mm
GRIGGIO S200/3/4
Stressing Ageing
S200 PROFIL 3 PROFILE BRUSHES 3 SIDES “CE”
complete with : – 1 top unit with 2 lamellar brushes
1 RH side unit with 1 lamellar brush
1 LH side unit with 1 lamellar brush
S200 PROFIL 4 PROFILE BRUSHES 4 SIDES “CE”
complete with : – 1 top unit with 2 lamellar brushes
1 bottom unit with 2 lamellar brushes
1 RH side unit with 1 lamellar brush
1 LH side unit with 1 lamellar brush
Technical Data
Working height 160 mm with lateral brushes = 100 mm
Working width = 40-200 mm
Min working length = 420 mm
Vertical side brushes tilting +45-45°
Horizontal top brushes tilting +15-15°
Brush dimensions dia. = 280 mm
No. 4 suction hoods (S200/3) dia. = 100 mm
No. 6 suction hoods (S200/4) dia. = 100 mm
No. 4 motors (S200/3) = 1 (0,75) hp (kw)
No. 6 motors (S200/4) = 1 (0,75) hp (kw)
Installed power (S 200/3) = 3,5 kw
Installed power (S200/4) = 5 kw
Brush speed with inverter = 100-1000 g/1′
Variable speed of the mat = 3-20 mt/1′
Net weight (S200/3) = 500 kg
Net weight (S200/4) = 600 kg
GRIGGIO S800/2
Stressing Ageing
Technical Data
Working width = 800 mm
Max working height = 300 mm
Max diameter of 250 mm brushes
2 hoods (S800/2) = 2h 140 mm
Speed variator conveyor = 3-10 m / 1
Two motor brushes (S800/ 2) of 3 kW (2.2 hp)
Net Weight (S800/2) = 830 kg
GRIGGIO S600/2
Stressing Ageing
Technical Data
Working width = 600 mm
Max working height = 110 mm
Max diameter of 250 mm brushes
4 hoods diameter (S600/2) = mm 2h140
Gear motors conveyor carpet = 0.37 KW
Two motor brushes (S600/2) of 3 kW (2.2 hp)
Net Weight (S600/2) = 750 kg
GRIGGIO S300/4
Stressing Ageing
Technical Data
Working width = 300 mm
Max working height = 110 mm
Max diameter of the brush = 220 mm
Gear motors conveyor carpet = 0.22 kW
Speed variator conveyor = 3-10 m / 1
4 motor brushes (S300 / 4) = 1.5 kW (1.1 hp)
Net Weight (S300 / 4) = 920 kg
GRIGGIO S300/2
Stressing Ageing
Technical Data
Working width = 300 mm
Max working height = 110 mm
Max diameter of the brush = 220 mm
2 hoods (S300 / 2) = 120 mm
Gear motors conveyor carpet = 0.22 kW
Speed variator conveyor = 3-10 m / 1
Two motor brushes (S300 / 2) = 1.5 kW (1.1 hp)
Net Weight (S300 / 2) = 470 kg
GRIGGIO S300/1
Stressing Ageing
Technical Data
Working width = 300 mm
Max working height = 110 mm
Max diameter of the brush = 220 mm
1 hood (S300 / 1) = 120 mm
Gear motors conveyor carpet = 0.22 kW
Speed variator conveyor = 3-10 m / 1
1 motor for the brush (S300 / 1) = 1.1 kW (0.8 hp)
Net Weight (S300 / 1) = 330 kg
CMC LEV110
Wide Belt Sander
Technical Data
- Working width = 1100 mm
- Sanding belt size Width lenght = 1120 x 2150 mm
Optional: 1120 x 2650 mm
- Max. working Thickness = 160 mm
CMC LEV95
Wide Belt Sander
Technical Data
- Working width = 950 mm
- Sanding belt size Width lenght = 970 x 2150 mm
- Max. working Thickness = 160 mm
